What we make
We cast cable cleats in SS316 stainless and LM6 aluminium, and build IP68 earth link boxes for 33, 132 and 275 kV networks. The SS316 trefoil cleat holds the world's highest short-circuit type test result: 264 kA peak, to BS EN 50368.
About us.
Evergrow has built cable cleats and earth link boxes since 1996, for the power, oil & gas, mining and rail industries. We cast our own cleats in-house on TOYO cold-die machinery instead of reselling them, and our team gives the technical support that resolves clients' installation and design constraints.
Casting in-house means we control the spec. We were the first in Malaysia to meet TNB's IP68 requirement for 132 kV link boxes (IEC 60529), and our SS316 trefoil cleat is type-tested to 264 kA peak. Approved by TNB and PETRONAS since 2007 and a listed vendor for SESCO and SESB, our products are used across 13 countries in Asia, the Gulf and Oceania — every hard figure verified by independent, accredited labs.

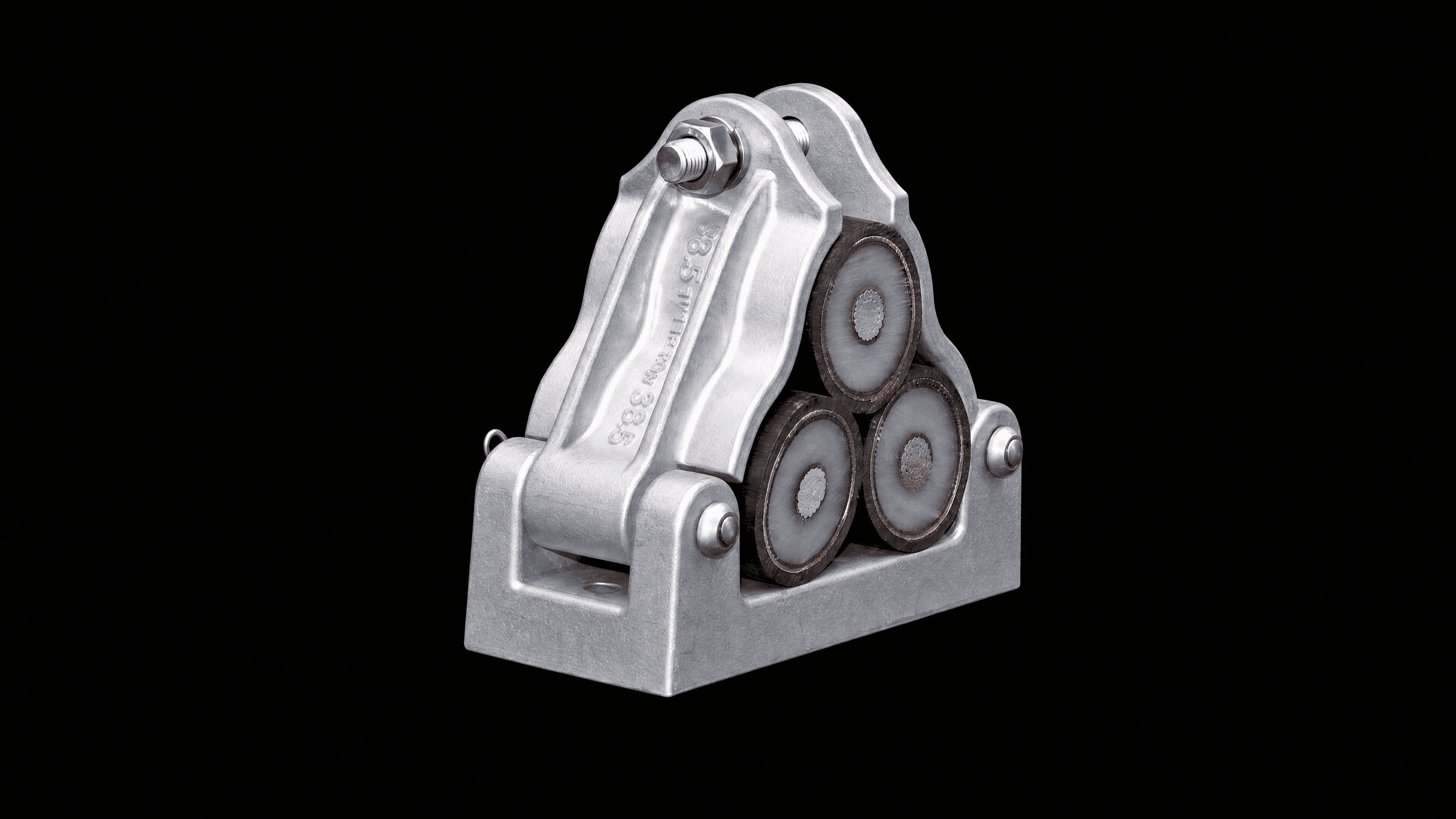

Cable cleats — one casting house, five formations.
Cast and folded in-house. Pick a formation to see its material, short-circuit rating and standard — pulled straight from the catalog.
Type
Cast LM6 and AD12 alloys, trefoil clamp
Built to 10× the requirement.
MTR Hong Kong asked for 60 kg. Our aluminium trefoil withstood 580 kg in AES destruction testing.
AES Hong Kong · report PL-12-5009

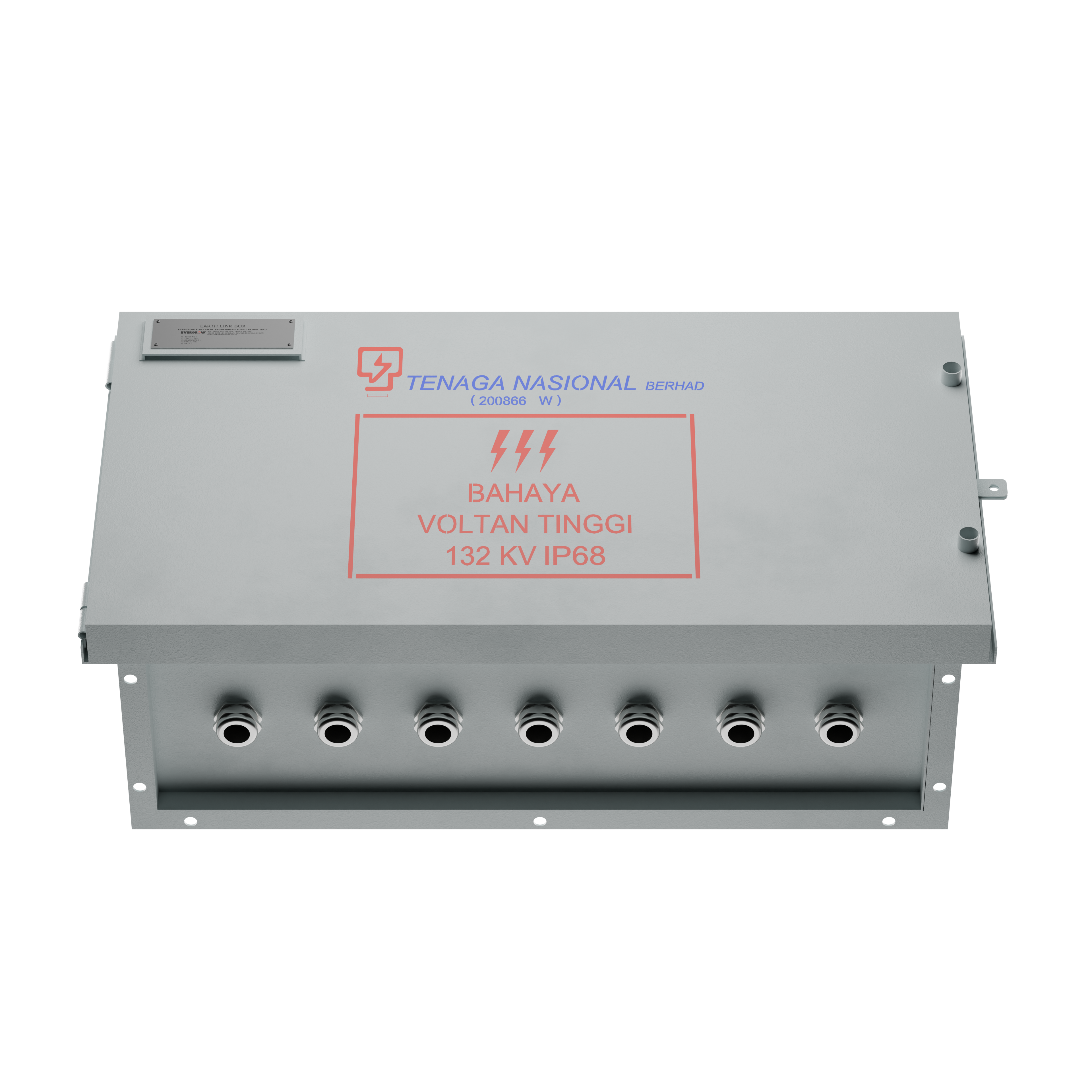

Malaysia's first IP68 132 kV link box.
Single-door at 33 kV, double-door at 132 and 275 kV; 2–3 mm SUS304 throughout. SVL and solid bonding, 3+1 and 6+1 ways. Inside: SIEMENS SVL units, an SMC insulator, a 5 mm EPDM seal and Evergrow-designed anti-theft screws. Sealed to IP68 for continuous immersion (IEC 60529).
Voltage
Configuration
Bonding
Applicable test reports
Every box begins as a drawing.
Each enclosure is dimensioned and approved as a general arrangement before any plate is cut. Production drawings cover 33, 132 and 275 kV, 3+1 and 6+1, SVL and solid, down to the busbar, the SMC insulator and the name-plate.
Every number here is a test result.
Every figure traces to a lab report.
SGS — Coating / Paint Test
QDIN2509001886PL01-1_EN · 2025-11-28TNB-required testing on SUS304 stainless steel plate (33 / 132 / 275 kV link boxes).
| # | Test item | Method | Result | Requirement | Verdict |
|---|---|---|---|---|---|
| 1 | Impact resistance (intrusion) | ASTM D2794-93(2024) | 130 kg·cm | > 40 kg·cm | Pass |
| 2 | Impact resistance (extrusion) | ASTM D2794-93(2024) | 60 kg·cm | > 40 kg·cm | Pass |
| 3 | Gloss (60°) | ISO 2813:2014 | 24 | 23.75–26.25 | Pass |
| 4 | Cross-cut adhesion | ISO 2409:2020 | Class 0 (GT=0) | GT=0 | Pass |
| 5 | Pencil hardness | ASTM D3363-22 | 2H | ≥ 2H | Pass |
| 6 | Bend test (conical mandrel) | ISO 6860:2006 | PASS | — | Pass |
Impact rig: 15.9 mm punch, 2000 g drop mass · Lab (23±2) °C, (50±5)% RH
CPRI — Central Power Research Institute
PassBangalore, India · Member of STL
- Report nos.
- CPRI BLR SCL MISC 23T1630 & 23T1631
- Date
- 17 April 2024
- Samples
- 132 kV 3+1 and 6+1 SVL earth link boxes
- Tests
- Short-time & peak withstand current (short-circuit)
- Result
- 31.5 kA RMS for 3 s · 69.30 kA peak — withstood. Sample condition verified before & after.
Guangdong Testing Institute (GTIPQS)
Dongguan, Guangdong, China
- Report no.
- DY241821 · 7 pages
- Product
- Link box — 3+1 & 6+1 SVL, double doors
- Test
- Degrees of protection (IP Code) — IP68
- Detail
- First numeral 6 (dust-tight) · second numeral 8 (continuous immersion)
- Conditions
- 25.6–26.1 °C · RH 70–74%
SIRIM (Malaysia)
Pass- Test
- Cable cleat mechanical strength — lateral & axial load
- Result
- PASS (refer SIRIM test reports)
TNB 132 kV IP68 type tests
- Short-circuit type test — 31.5 kA RMS, 3 s · 69.30 kA peak (CPRI)
- SVL functional type test (CPRI)
- IP68 type test (IEC 60529)
First in Malaysia to meet the TNB IP68 requirement for 132 kV.
First company in Malaysia to meet the TNB IP68 requirement for 132 kV link boxes (per IEC 60529). Approved by TNB and PETRONAS refineries since 2007.

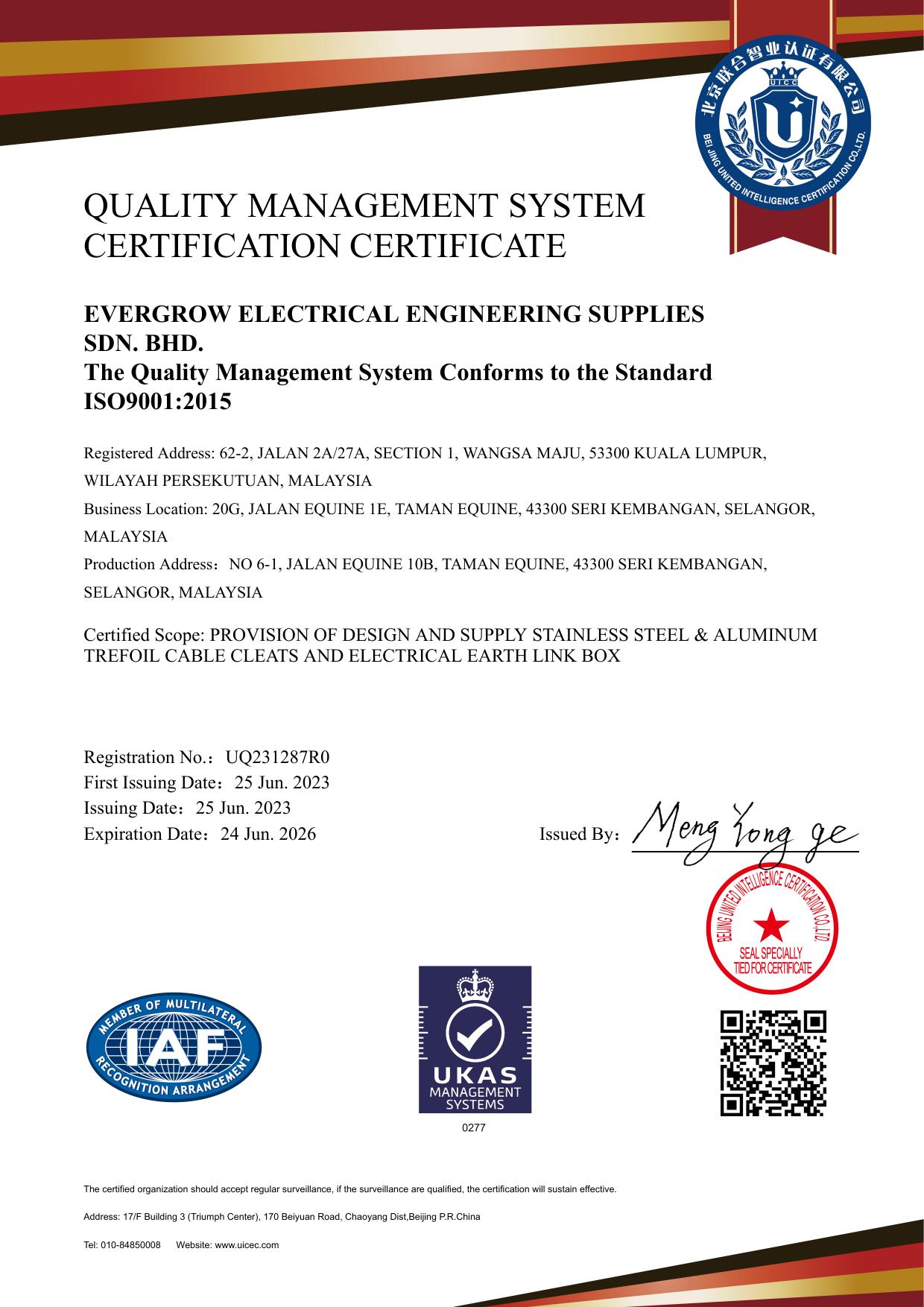

- Reg. no.
- UQ231287R0
- Accreditation
- UKAS / IAF accredited (via UICEC)
- Issued
- 25 Jun 2023
- Valid until
- 24 Jun 2026
Approved vendor
Supplied to projects in 13 countries.
Send the spec. We'll quote it.
Send the voltage class, configuration and quantities. The Evergrow team will return a quote and the relevant type-test reports.
